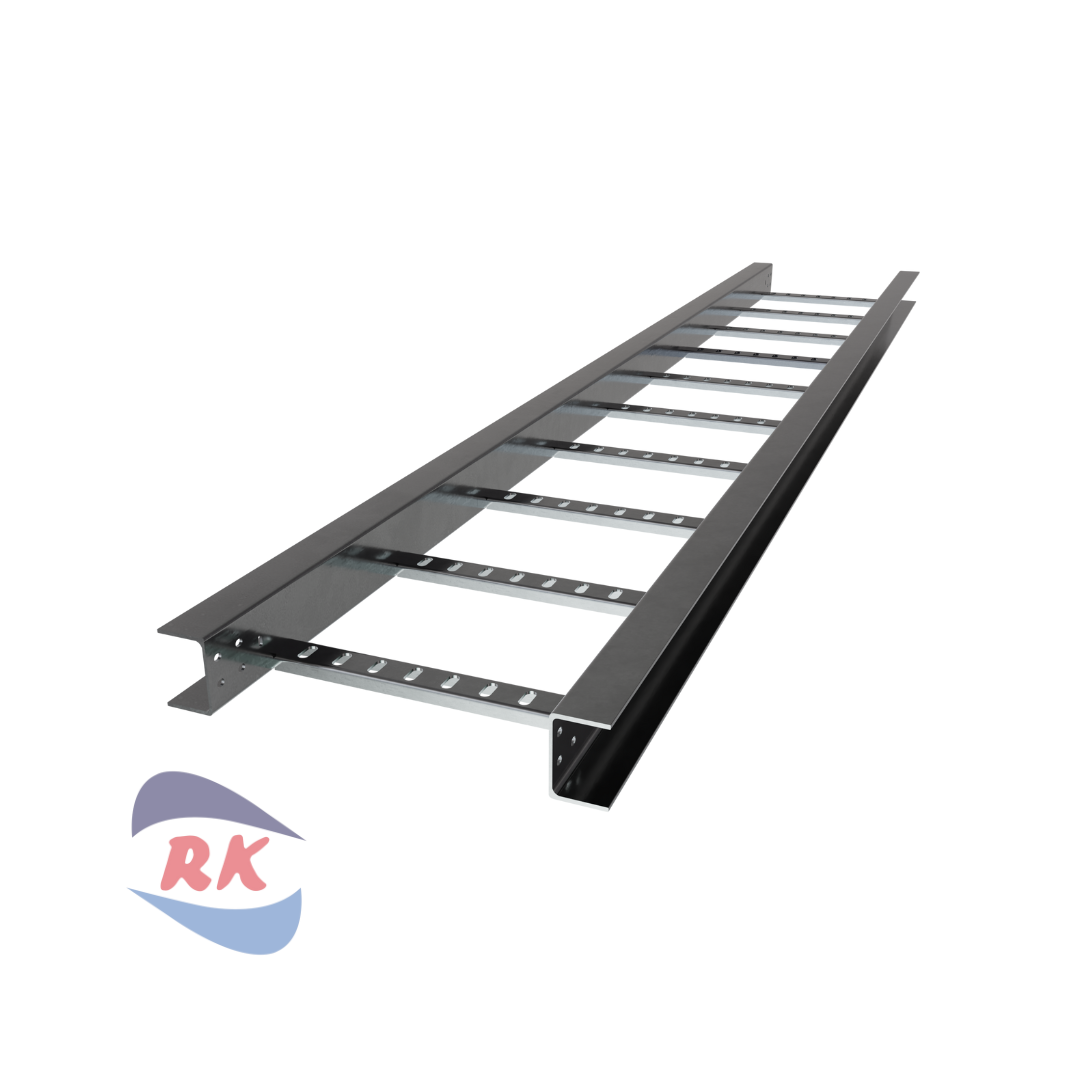

Ladder Type Cable Tray

Ladder Type Cable Trays manufactured by R.K. Engineering are designed under strict norms by using superior quality raw material like Galvanized Mild Steel, having high strength, which are used in heavy-duty power distribution industries. Ladder type Cable tray comprises of sturdy covering to safeguard the cables from dust, water, falling objects, etc.

Ladder cable trays offered by R.K. Engineering are highly acknowledged in the industry for superior performance, high longevity, and minimal maintenance cost.

Features

Optimal Design

The ladder-style rungs offer a sturdy, open structure that facilitates good heat dissipation and ventilation, supporting the integrity of the cable.

Sturdy Construction

Our ladder-style cable trays are made of premium materials, like aluminium or galvanized steel, which guarantees their long-term stamina and resistance to corrosion.

Cable Management

Cables can be easily identified and traced when needed thanks to ladder-style cable trays, which provide an orderly path for cables to follow.

Simple Installation

Our cable trays are simple to construct and customize to your exact requirements thanks to their modular design and assortment of attachments. This reduces installation expenses and time.

Benefits

Cost-Effective : Our cable trays versatility and simplicity of installation can save money on both upkeep and installation.

Scalability : Our modular cable trays can be readily expanded or modified without causing significant disruptions as your demands for cable

Enhanced Safety: Ladder-style cable trays lower the possibility of tripping risks and cable damage by keeping cords off the ground and arranged, improving workplace safety.

Efficient maintenance : Downtime during repairs or upgrades is minimized because cables are easy to access and maintain.

Material

Mild Steel / Galvanized Sheet Stainless Steel / Aluminium

Finishing

Painted / Powder Coated Hot Dip Galvanized / Anodized Self-Finished Pre Galvanized

PRODUCT Accessories

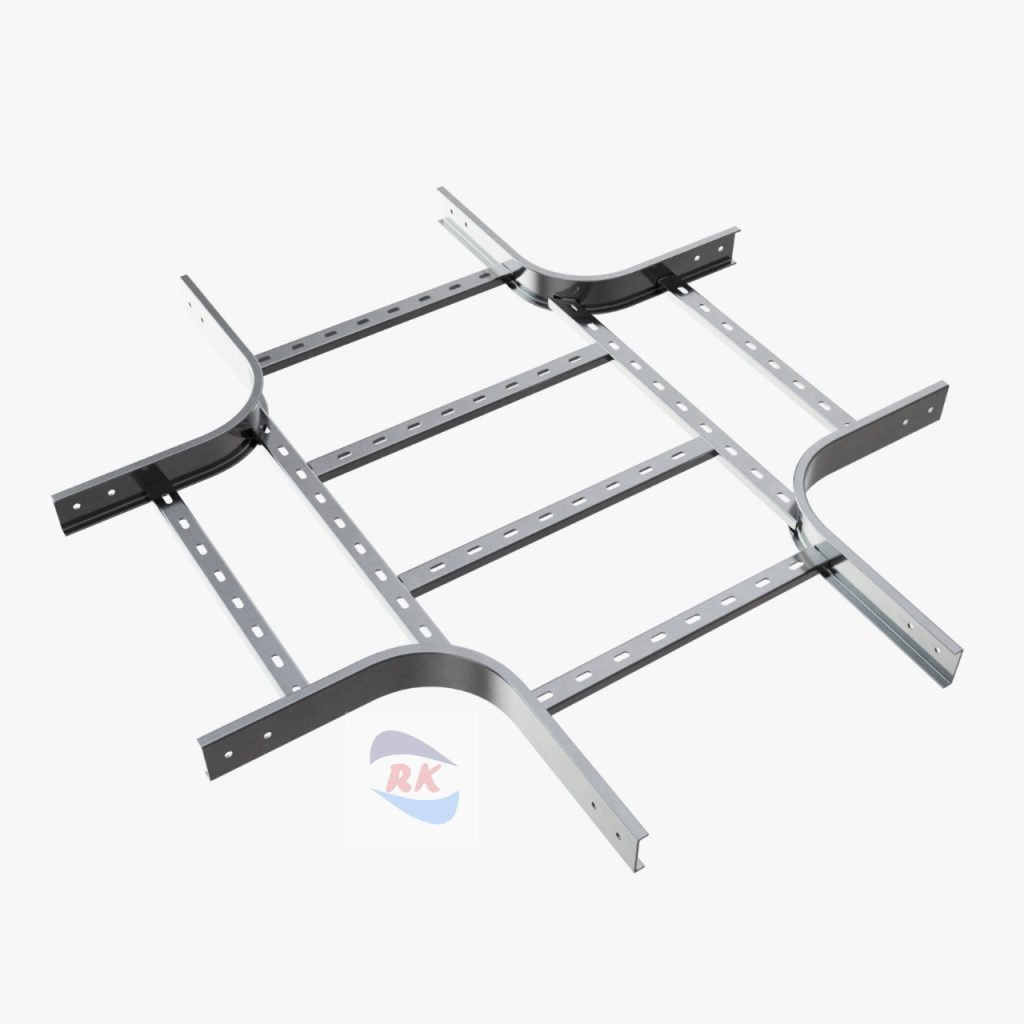

Cross Bend

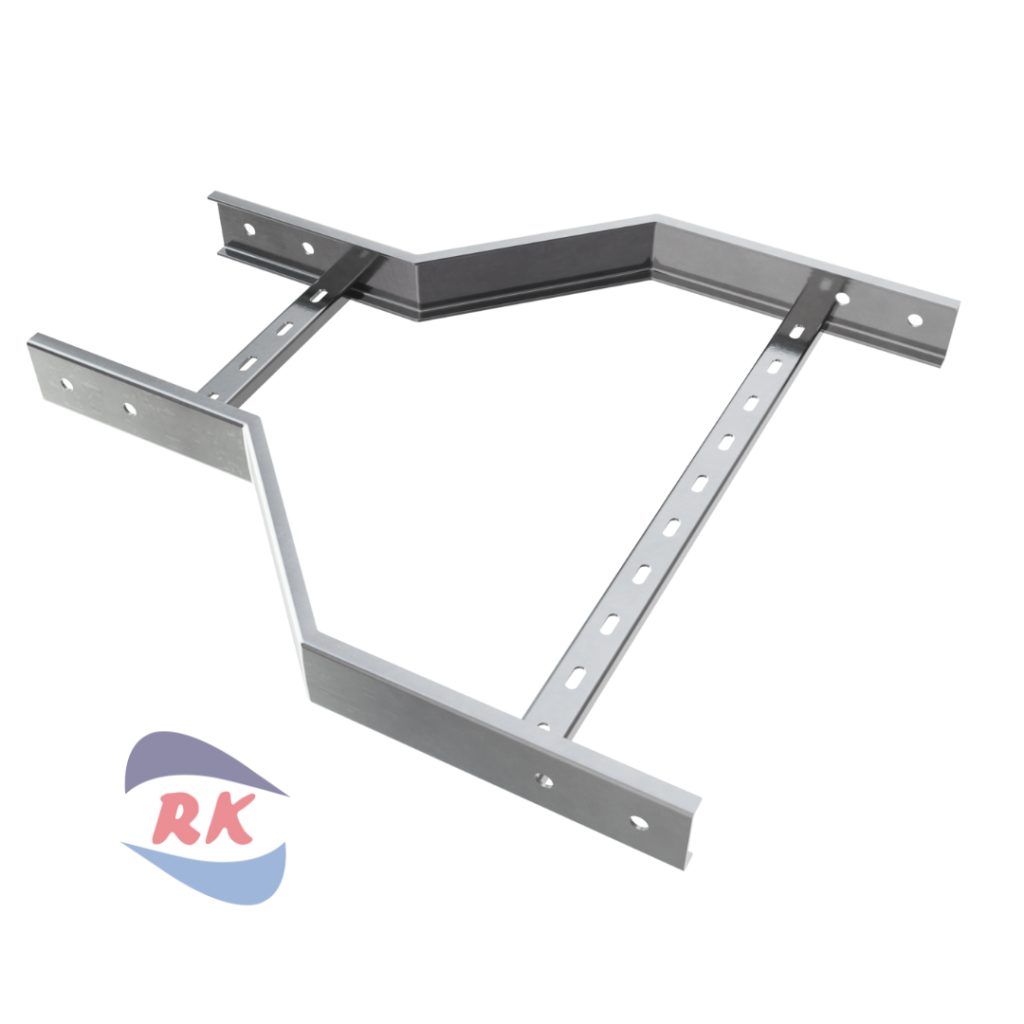

Centre Reducer

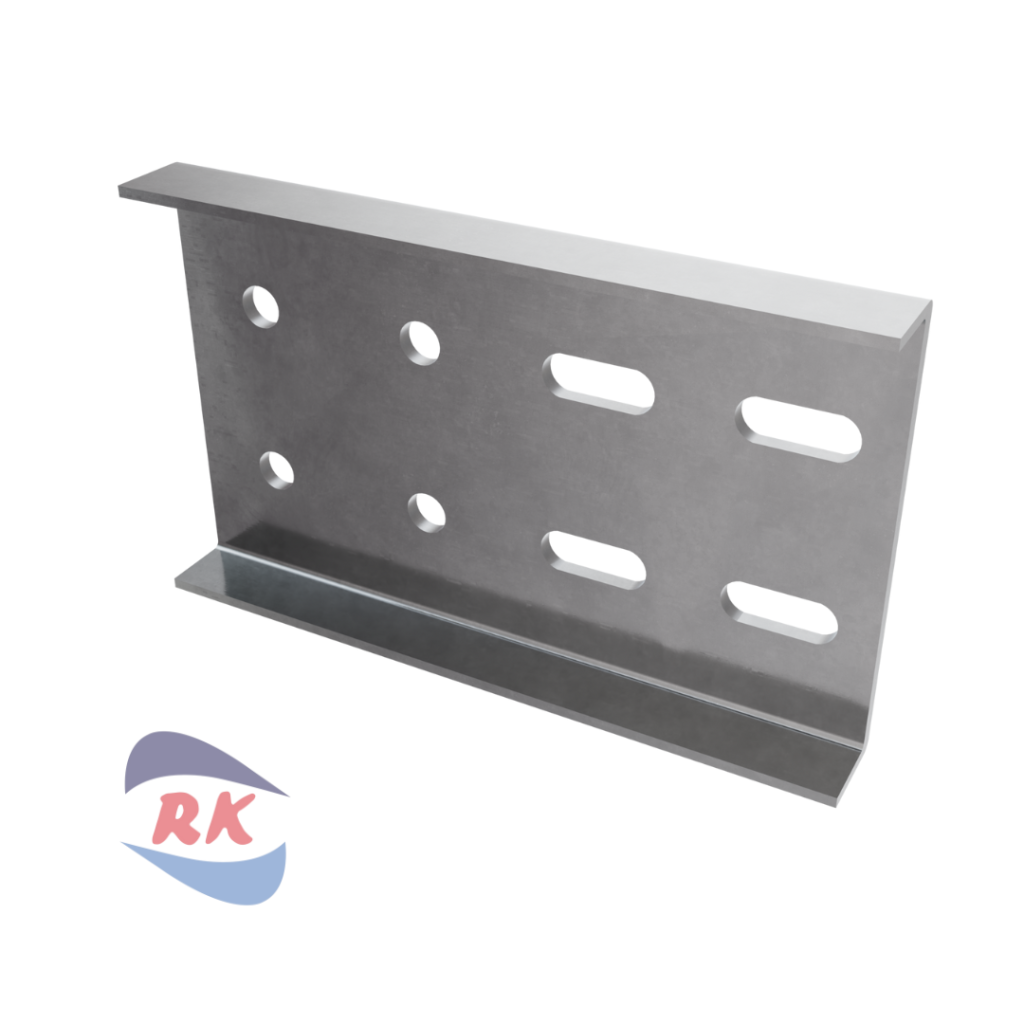

Coupler Plate

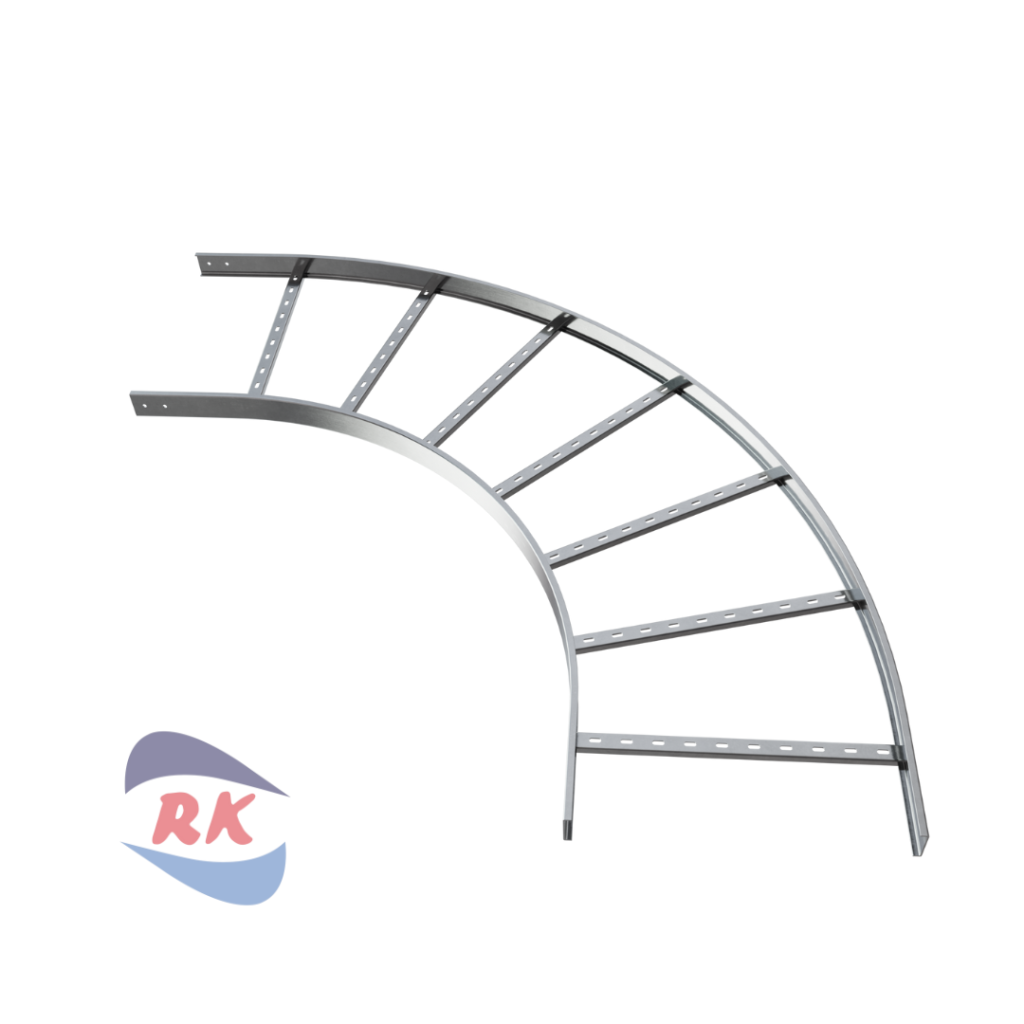

Horizontal Bend

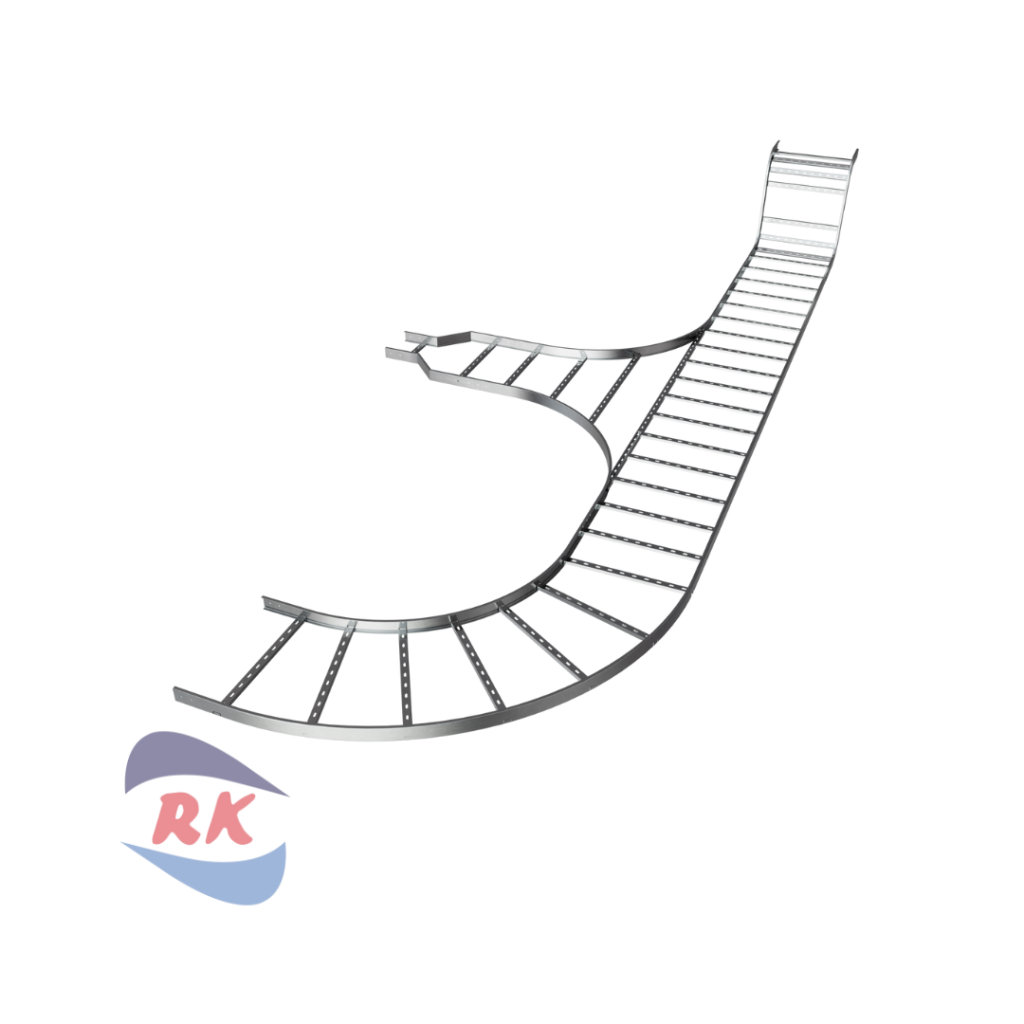

Ladder Type Cable Tray

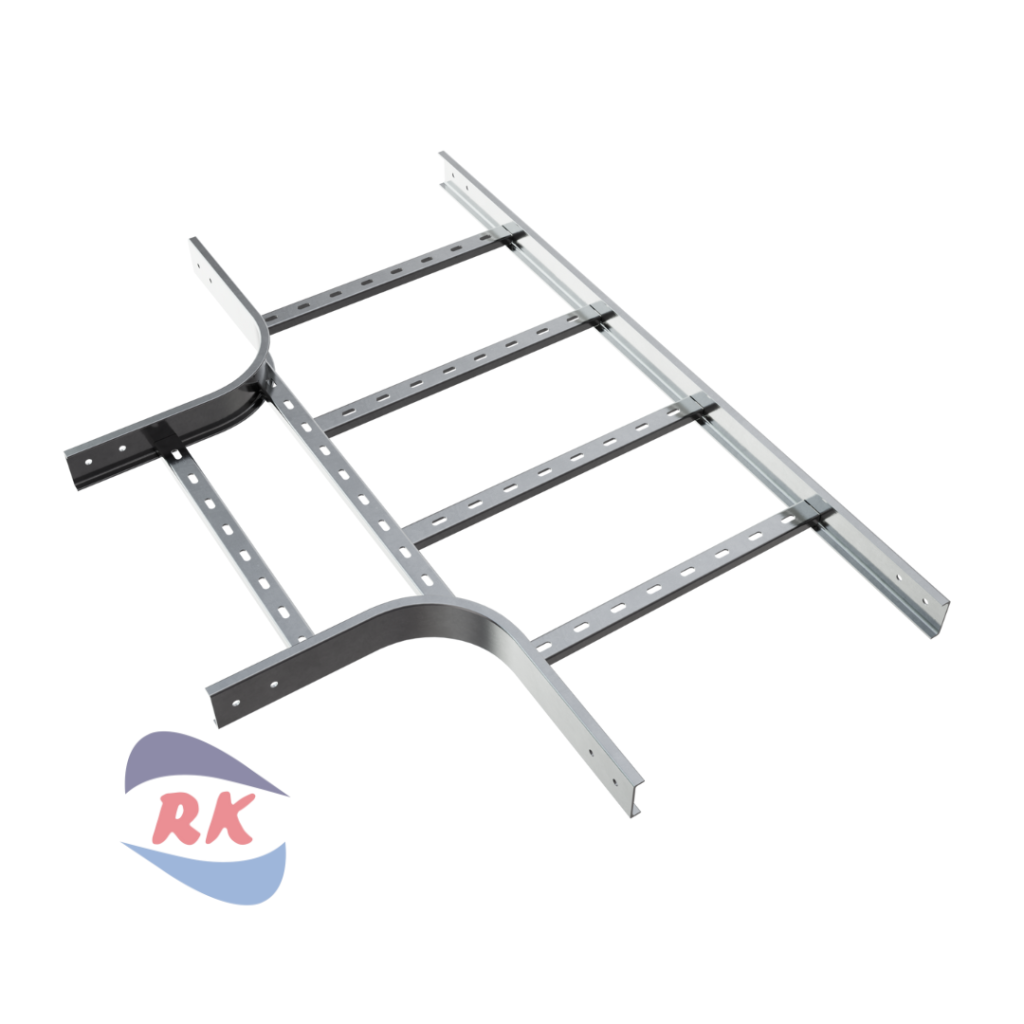

Tee Bend

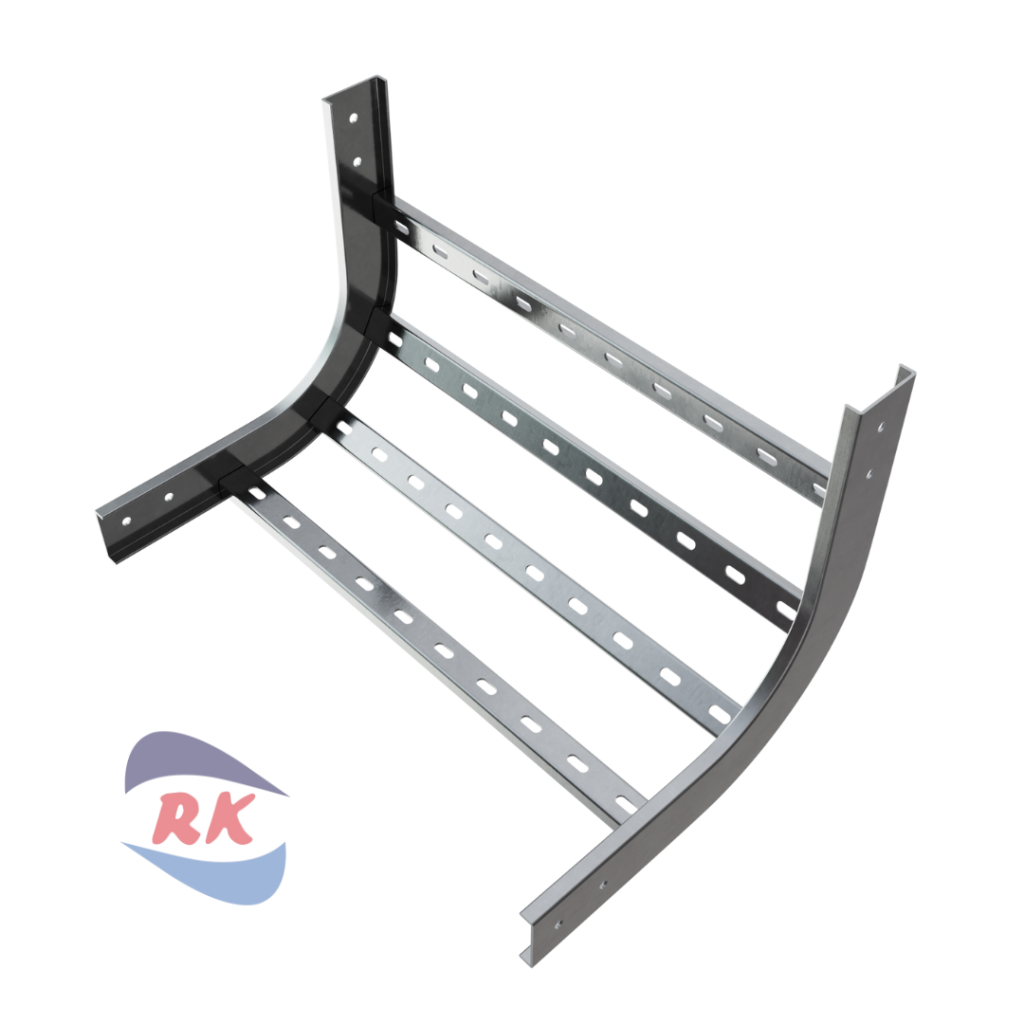

Vertical Inside Bend

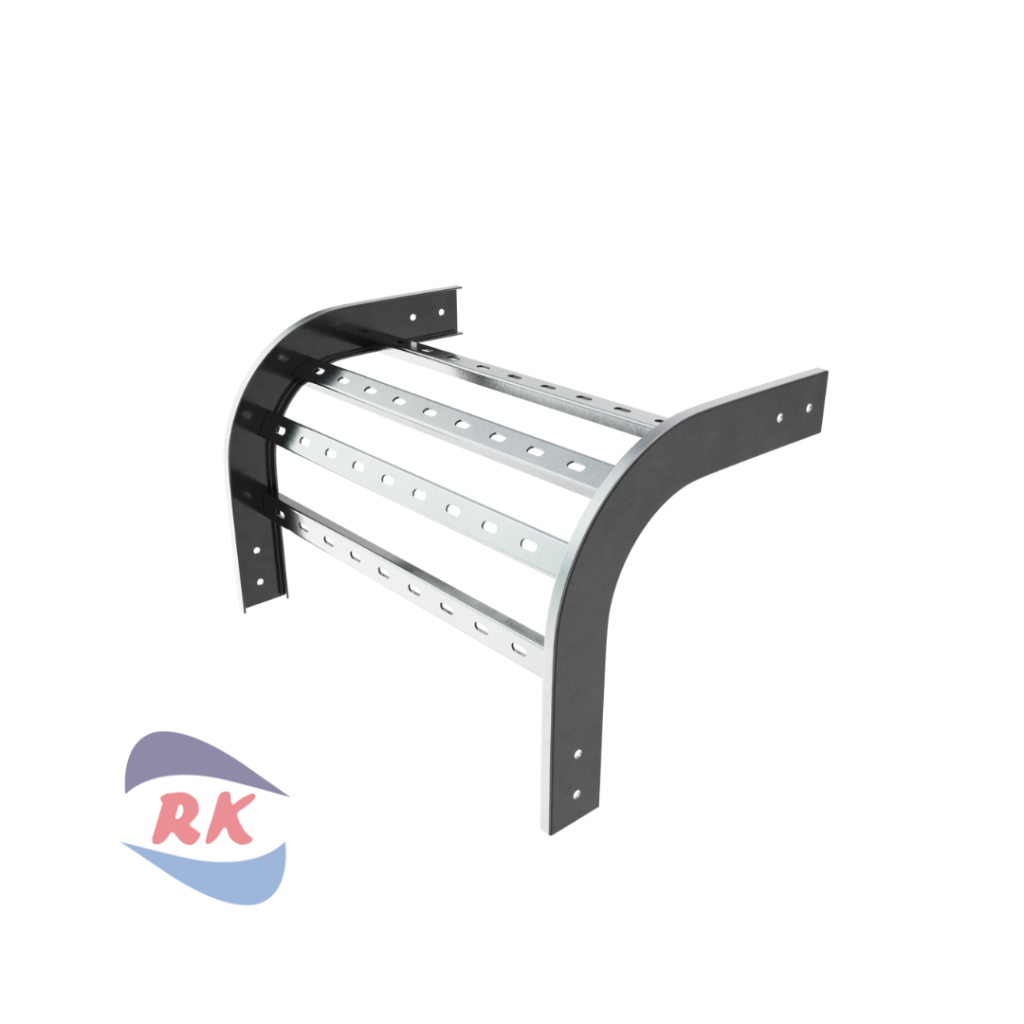

Vertical Outside Bend

Ladder Cable Trays (Hot Dip Galvanized, Powder Coated)

Parameter	Specification
Width (W)	100mm to 1200mm
Side Channel Height (H)	50mm to 150mm
Rung Width	30mm to 50mm
Rung Height	10mm to 20mm
Rung C to C	250mm to 300mm
Thickness (T)	1.6mm, 2mm, 2.5mm & 3mm
Length (L)	2500mm / 3000mm
MOC	MS Steel, Stainless Steel, Aluminum

Cable Tray Manufacturing Standards

Standard	Code
IS	4759 / 2629 / 2623 / 6745
ASTM	123
IEC	61537 : 2006
